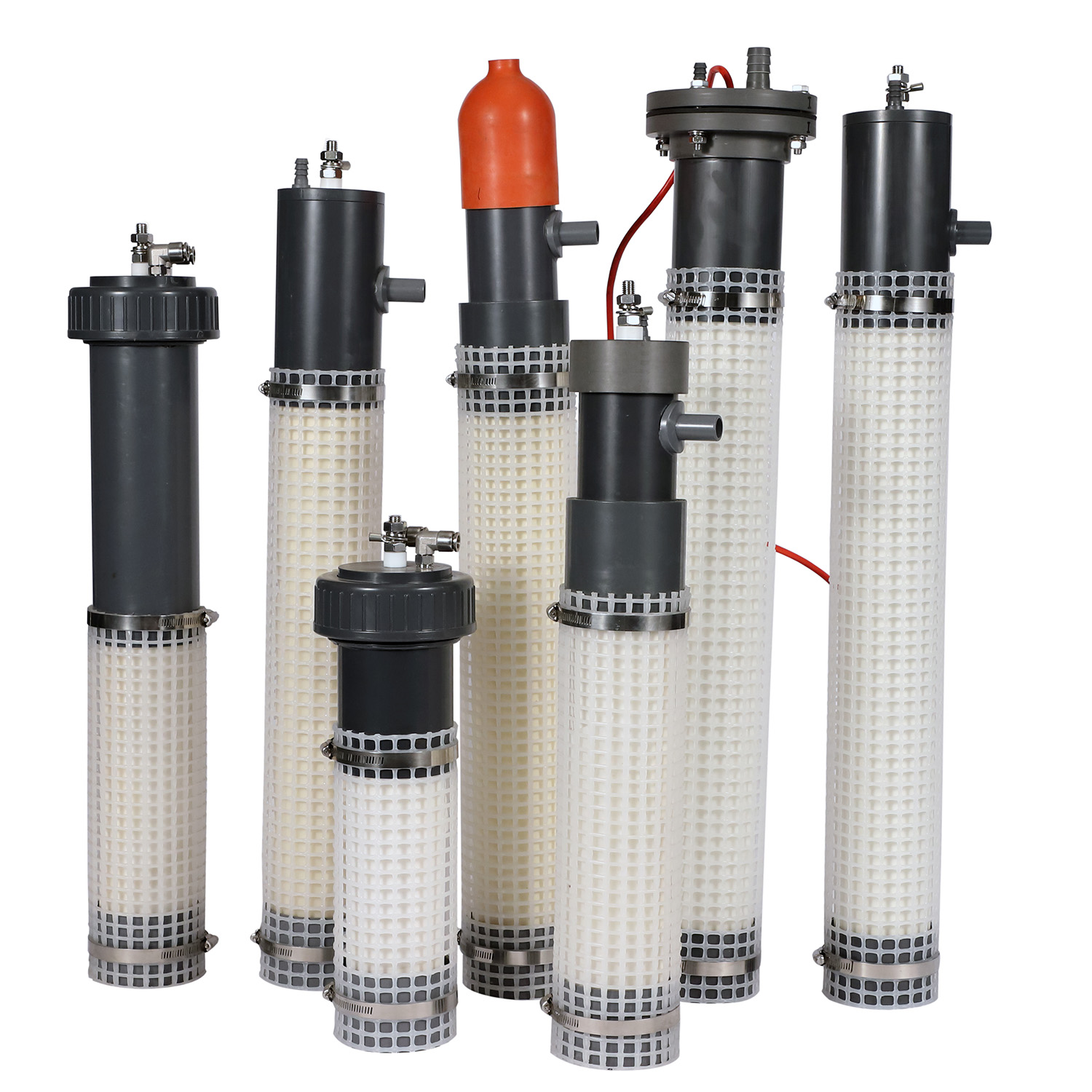

TUBULAR ANODE/CATHODE CELL
|
RisingSun tubular Anode/Cathode cell can be used in E-COAT paint system with most types of paints. It serves as the opposing electrode and simultaneously removes solubilizer (usually a common organic acid) from the paint to maintain chemical balance. We use American outstanding quality ion exchange membrane with low resistance, high permselectivity. |
 |
|
|
|
|
|
|
> American outstanding quality ion exchange membrane |
> E-coat process in automobile, home appliances and other industries |
|
> Available in various material of electrode (SS 316L / Ti, Titanium with iridium coated.) |
|
|
> Available in various cell type of open, union, flange, bare, etc. |
|
|
> Integrated high strength support core tube with high porosity. |
|
|
> Low resistance, save energy |
|
|
> Simple and economic module replacement |
|
ADVANTAGES
◎Open type feature: simple design with high cost performance
◎Union type feature: resistance to heavy pressure, high cycle efficiency, simple installation
◎Flange type feature: corrosion resistance, high cycle efficiency, can be used at bottom of paint tank
◎Bare type feature: resistance to heavy pressure with seamless Titanium with iridium coated electrode, corrosion resistance
|
Brand & Configuration |
Cell Type* |
Effective Membrane Length* (mm) |
Membrane Outer Diameter* (mm) |
Electrode Outer Diameter* (mm) |
|
RISINGSUN TUBULAR ANODE |
OPEN UNION FLANGE BARE |
… 1000 2000 3000 … |
1=76 2=67 |
A=48 B=50 N=no electrode |
*As customer's request, and the effective membrane length can reach 6000 mm
|
Brand & Configuration |
Cell Type* |
Effective Membrane Length* (mm) |
Membrane Outer Diameter* (mm) |
Electrode Outer Diameter* (mm) |
|
RISINGSUN TUBULAR CATHODE |
OPEN UNION FLANGE BARE |
… 1000 2000 3000 … |
1=76 2=67 |
A=48 B=50 N=no electrode |
*As customer's request, and the effective membrane length can reach 6000 mm
